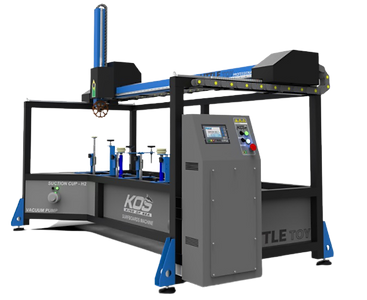

LITTLE TOY
Launch 2023
The Little Toy Machine Model 2023 was designed to get you started at a high level. Complete with integrated vacuum system and dedicated operational control, ready to use!!!
Dimensions (L x W x H): 2800mm x 1250mm x 2500mm
Max size of 3D projects: 6'10" x 23" x 4 1/2"
Machine frame: 60x60 Reinforced Structural Aluminum Profile
Axis Motorization: Easy Servo 120Kgf/cm + High Torque Planetary Reduction
Max cutting speed: 18,000 mm/min
Engine Power: 1 hp / 11,000 rpm
Inductive Sensors: Start/Limits and Automatic Positioning of Axes
Operational Panel: Panel with Dedicated Command NVCNC coupled 7"
Fixing system: Prism centered vacuum table
Approximate weight: 650kg
Machine voltage: Single phase 220v
-
10 cuts in 8 hours
-
Fidelity and Precision
-
smart electronics
-
Dedicated command
-
Integrated Vacuum System
-
7 inch cutting disc
7 FEETS
Dimensions (L x W x H): 3200mm x 1300mm x 2650mm
Max size of 3D projects: 7'4" x 28" x 5 1/2"
Machine frame: 90x90 Reinforced Structural Aluminum Profile
Axis Motorization: Easy Servo 120Kgf/cm + High Torque Planetary Reduction
Max cutting speed: 18,000 mm/min
Engine Power: 3 hp / 8,600 rpm
Inductive Sensors: Start/Limits and Automatic Positioning of Axes
Operational Panel: Panel with Dedicated Command NVCNC coupled 7"
Fixing system: Prism centered vacuum table
Approximate weight: 750kg
Machine voltage: Single phase 220v
The KBSMF 7LH Machine was designed for you Professional Shaper that produces on a large scale and makes 90% of its shortboard production with few variations of larger projects and also serving the Semi-Gun line.
-
16 cuts in 8 hours
-
Fidelity and Precision
-
smart electronics
-
Dedicated command
-
Integrated Vacuum System
-
10 inch cutting disc
10 FEETS
The KBSMF 104LH Machine was designed for you Professional Shaper that produces on a large scale and has the largest variety of sizes and models of surfboards and also aimed at Machining Centers and service provision.
Dimensions (L x W x H): 3500mm x 1500mm x 2800mm
Max size of 3D projects: 10'4" x 32" x 6 1/2"
Machine frame: 90X90 Reinforced Structural Aluminum Profile
Axis Motorization: Easy Servo 120Kgf/cm + High Torque Planetary Reduction
Max cutting speed: 18,000 mm/min
Engine Power: 3 hp / 8,600 rpm
Inductive Sensors: Start/Limits and Automatic Positioning of Axes
Operational Panel: Panel with Dedicated Command NVCNC coupled 7"
Fixing system: Prism centered vacuum table
Approximate weight: 850kg
Machine voltage: Single phase 220v
-
16 cuts in 8 hours
-
Fidelity and Precision
-
smart electronics
-
Dedicated command
-
Integrated Vacuum System
-
10 inch cutting disc
12 FEETS
Dimensions (L x W x H): 4200mm x 1500mm x 2800mm
Max size of 3D projects: 12'2" x 32" x 10 1/2"
Machine frame: 90X90 Reinforced Structural Aluminum Profile
Axis Motorization: Easy Servo 120Kgf/cm + High Torque Planetary Reduction
Max cutting speed: 18,000 mm/min
Engine Power: 3 hp / 8,600 rpm
Inductive Sensors: Start/Limits and Automatic Positioning of Axes
Operational Panel: Panel with Dedicated Control NVCNC coupled 7"
Fixing system: Prism centered vacuum table
Approximate weight: 950kg
Machine voltage: Single phase 220v
The KBSMF 12LH Machine is designed for you Professional Shaper who produce on a large scale and have variety of Semi-Gun, Gun and MegaGun in their model quiver.
-
16 cuts in 8 hours
-
Fidelity and Precision
-
smart electronics
-
Dedicated command
-
Integrated Vacuum System
-
10 inch cutting disc
14 FEETS
The KBSMF 14 HC Machine was designed for you Professional Shaper who produce on a large scale and have the largest variety of Special Projects such as PaddleBoards, Race, WindSurf, Mega Gun, also aimed at Machining Centers and service provision.
Dimensions (L x W x H): 5200mm x 2000mm x 3100mm
Maximum size of 3D projects: 14'1" x 40" x 12 1/2"
Machine frame: 90X90 Reinforced Structural Aluminum Profile
Axis Motorization: Easy Servo 120Kgf/cm + High Torque Planetary Reduction
Max cutting speed: 18,000 mm/min
Engine Power: 3 hp / 8,600 rpm
Inductive Sensors: Start/Limits and Automatic Positioning of Axes
Operational Panel: Panel with Dedicated Command NVCNC coupled 7"
Fixing system: Prism centered vacuum table
Approximate weight: 1200kg
Machine voltage: Single phase 220v
-
16 cuts in 8 hours
-
Fidelity and Precision
-
smart electronics
-
Dedicated command
-
Integrated Vacuum System
-
10 inch cutting disc
